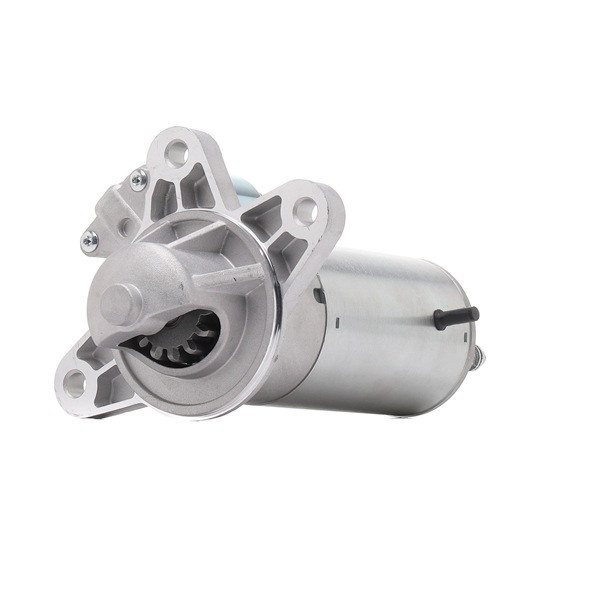

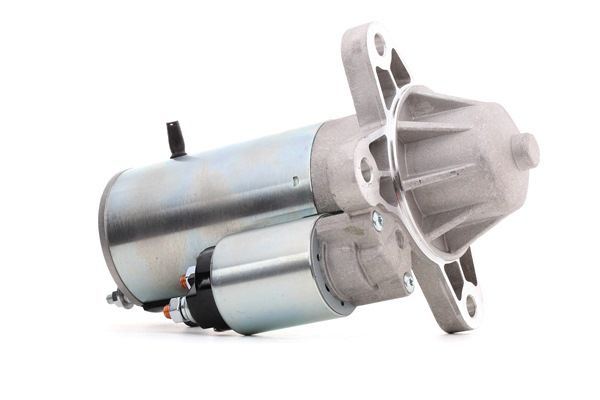

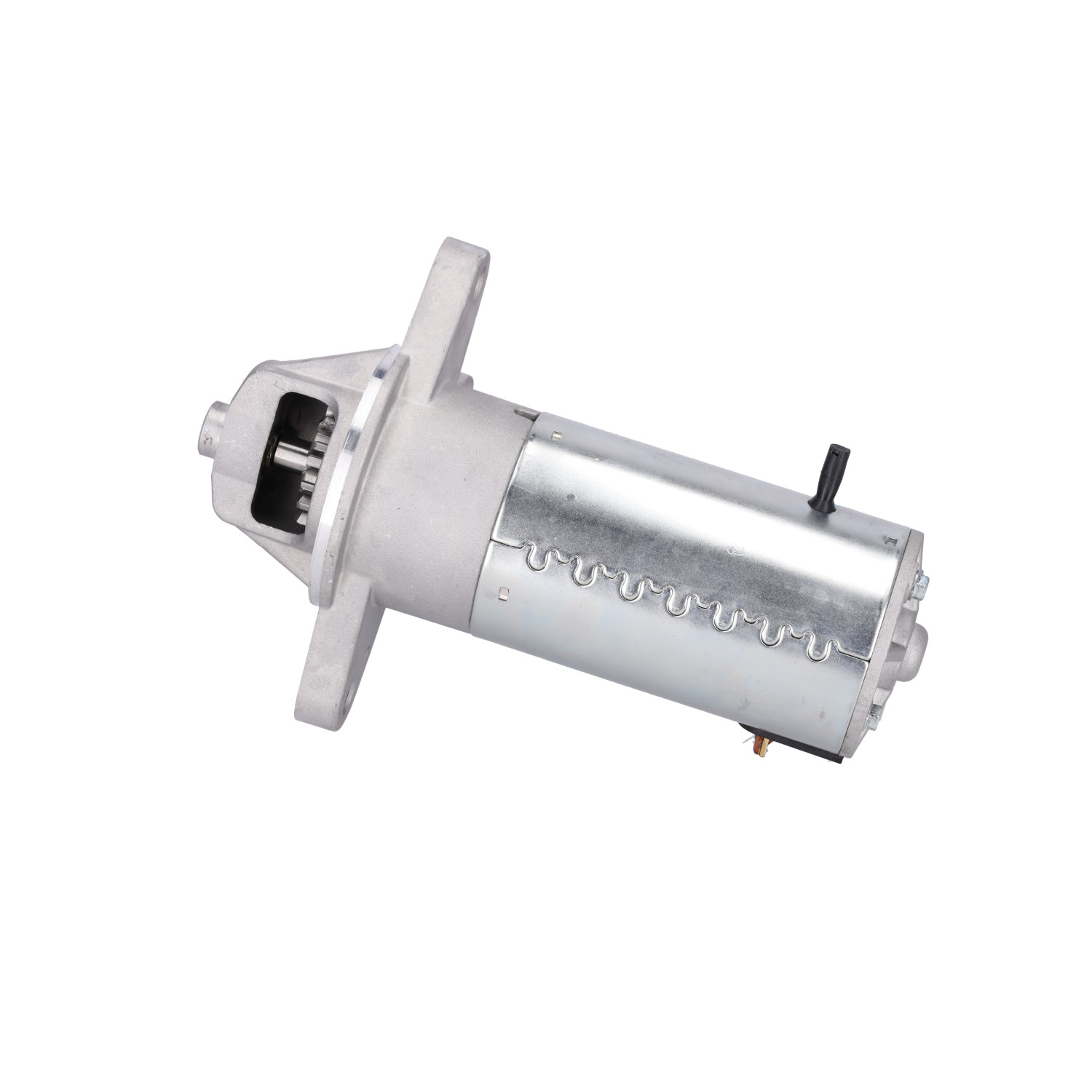

Starter motor FORD Transit Mk4 Platform/Chassis (VE83) 4HD 2.5TD 75 HP
<
1
2
3
4
5
>
>>
Product ID: 2S0096
- Rated Power [kW]: 2,2
- Power [kW]: 2,2
- Voltage [V]: 12
- Number of Teeth: 13
- Rotation Direction: Clockwise rotation
- Number of mounting bores: 3
- Flange Diameter [mm]: 92
- Number of threaded holes0
- Plug Type ID: 30/50(M6), M6
- Quantity Unit: Piece
- Condition: New
Details
Product ID: 800.001.113.031
- Rated Power [kW]: 2,7
- Voltage [V]: 12
- Number of Teeth: 11
- Rotation Direction: Clockwise rotation
- Number of mounting bores: 3
- Flange Diameter [mm]: 89,0
- Clamp: B+ (M10)
- Quality: +Line Original
- Mounting Angle [degrees]: +45
- Condition: New
Details
Product ID: S4007
- Rated Power [kW]: 2,5
- Voltage [V]: 12
- Number of Teeth: 13
- Rotation Direction: Clockwise rotation
- Number of mounting bores: 3
- Manufacturer Restriction: LUCAS
- Version: LRS673
- Quality: STANDARD LINE
- New part without deposit
- Condition: New
Details
Product ID: 0 986 020 181
- Rated Power [kW]: 2,3
- Construction Year from: 10/1996
- Voltage [V]: 12
- Number of Teeth: 13
- Rotation Direction: Clockwise rotation
- Number of mounting bores: 3
- Flange Diameter [mm]: 92
- Number of threaded holes0
- Exchange Part
- Clamp: 50, 30
- Position/Degree: rechts
- Pinion Rest Position [mm]: 19,8
- Starter Type: Self-supporting
- Length [mm]: 252
- Bore Diameter [mm]: 11
- Bore Diameter 2 [mm]: 11
- Bore Ø 3 [mm]: 11
- Mounting Angle [degrees]: 35
- Jaw opening angle measurement [Degree]: 115
- Mounting bore angle measurement [degree]: 35
- Condition: Remanufactured
Core exchange £ 29,75 Pledge is NOT included The core charge will be refunded if you return the old spare part.
Details
Product ID: 8EA 011 610-581
- Rated Power [kW]: 2,3
- Voltage [V]: 12
- Number of Teeth: 13
- Rotation Direction: Clockwise rotation
- Number of mounting bores: 3
- Flange Diameter [mm]: 92
- Used part return not required
- Pinion Rest Position [mm]: 20
- New part without deposit
- Assy./disassy. by qualified personnel required!
- Condition: New
Details
Product ID: 220164A
- Rated Power [kW]: 2,3
- Voltage [V]: 12
- Number of Teeth: 13
- Rotation Direction: Clockwise rotation
- Number of mounting bores: 3
- Flange Diameter [mm]: 92
- Plug Type ID: 30-50
- Pinion Rest Position [mm]: 20
- Alternatively
- Alternative Repair Kit: 220164
- Condition: New
Details
Product ID: 188489
- Rated Power [kW]: 2,3
- Construction Year from: 08/1996
- Voltage [V]: 12
- Number of Teeth: 13
- Weight [kg]: 4,75
- Condition: New
Details
Product ID: 590.015.123.030
- Rated Power [kW]: 2,7
- Voltage [V]: 12
- Number of Teeth: 11
- Rotation Direction: Clockwise rotation
- Number of mounting bores: 3
- Flange Diameter [mm]: 88,9
- Clamp: B+ (M10), M10 B+
- Quality: +Line
- Condition: New
Details
free delivery
Product ID: GCB0210
- Rated Power [kW]: 2,2
- Voltage [V]: 12
- Number of Teeth: 13
- Rotation Direction: Clockwise rotation
- Number of mounting bores: 3
- Flange Diameter [mm]: 92
- Plug Type ID: 30,50(M6)
- Quantity Unit: Piece
- Condition: New
Details
Product ID: 25-2187
- Construction Year from: 11/1996
- for model code: Transit 190
- Construction Year from: 11/1996
- Vehicle type: Transit 100
- Construction Year from: 11/1996
- Vehicle type: Transit 190
- Construction Year from: 08/1996
- Vehicle type: Transit 120
- Rated Power [kW]: 2,3
- Voltage [V]: 12
- Number of Teeth: 13
- Rotation Direction: Clockwise rotation
- Number of mounting bores: 3
- Flange Diameter [mm]: 92
- Clamp: M8, Pin "50" M6
- Length 3 [mm]: 23,0
- Length [mm]: 190,0, 19,0
- Net weight [kg]: 4,6
- Condition: Remanufactured
Core exchange £ 15,55 core charge (incl. 20% VAT) is NOT included The core charge will be refunded if you return the old spare part.
Details
Product ID: LRS00976
- Construction Year from: 11/1996, 08/1996
- Vehicle type: Transit 190
- Rated Power [kW]: 2,3
- Voltage [V]: 12
- Number of Teeth: 13
- Rotation Direction: Clockwise rotation
- Number of mounting bores: 3
- Flange Diameter [mm]: 92
- Clamp: M8, Pin "50" M6
- Length 3 [mm]: 23,0
- Length [mm]: 190,0, 19,0
- Net weight [kg]: 4,6
- Condition: Remanufactured
Core exchange £ 18,40 core charge (incl. 20% VAT) is NOT included The core charge will be refunded if you return the old spare part.
Details
Product ID: 590.015.123.010
- Construction Year to: 10/1996
- New Part
- Rated Power [kW]: 2,7
- Voltage [V]: 12
- Number of Teeth: 12
- Rotation Direction: Clockwise rotation
- Number of mounting bores: 3
- Flange Diameter [mm]: 89,0
- Clamp: B+ (M10)
- Quality: +Line Original
- Mounting Angle [degrees]: +25
- Condition: New
Details
Starter motor Transit Mk4 Platform/Chassis (VE83)
- Transit Mk4 Platform/Chassis VE83 2.5 TD (EME/L/S, ENE/L/S) 101 HP 08.1994 - 03.2000
- Transit Mk4 Platform/Chassis VE83 2.5 DI (EME/L/S, ENE/L/S) 76 HP 08.1994 - 03.2000
- Transit Mk4 Platform/Chassis VE83 2.5 TD (EME/L/S, ENE/L/S) 85 HP 08.1994 - 03.2000
- Transit Mk4 Platform/Chassis VE83 2.5 DI (EML/S, ENL/S) 69 HP 08.1994 - 03.2000
- Transit Mk4 Platform/Chassis VE83 2.5 DI (EML, ENE/L) 116 HP 05.1999 - 03.2000
- Transit Mk4 Platform/Chassis VE83 2.0 (EME/L/S, ENE/L/S) 114 HP 08.1994 - 03.2000
