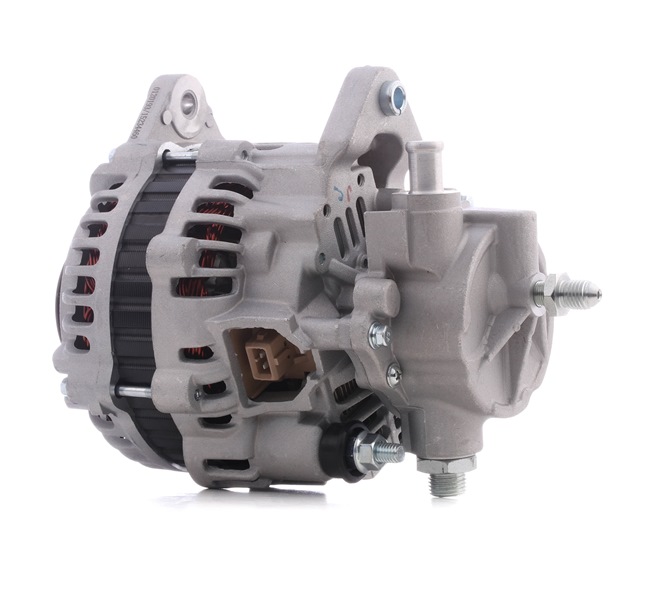

Alternator FORD Transit Mk4 Platform/Chassis (VE83) 4HD 2.5TD 75 HP
<
1
2
3
4
5
>
>>
Product ID: 28-2514
- for model code: Transit 190
- Vehicle type: Transit 100
- Vehicle type: Transit 190
- Construction Year to: 06/1997
- Vehicle type: Transit 120
- Alternator Charging Current [A]: 70
- Voltage [V]: 14
- Belt Pulley Ø [mm]: 67
- Number of ribs: 4
- Plug Type ID: 0230
- Vehicle Main Current: for vehicles with 12V main current
- Alternator Type: incl. vacuum pump
- Clamp: M6 B+, M5 D+ M5 W
- Bore Diameter 1 [mm]: 8
- Length 3 [mm]: 83,0
- Length [mm]: 34,0
- Net weight [kg]: 6,4
- Length 4 [mm]: 11,0
- Condition: Remanufactured
Core exchange £ 59,81 Pledge is NOT included The core charge will be refunded if you return the old spare part.
Details
Product ID: 595.601.095.130
- Alternator Charging Current [A]: 95
- Voltage [V]: 12
- Belt Pulley Ø [mm]: 60,0
- Number of grooves: 4
- Clamp: B+ (M8)
- New Part
- Quality: +Line Original
- Number of mounting bores: 3
- Mounting Angle [degrees]: +60, 60
- Condition: New
Details
Product ID: 1590101600
- Alternator Charging Current [A]: 95
- Voltage [V]: 12
- Belt Pulley Ø [mm]: 60
- Number of ribs: 4
- Plug Type ID: 0123
- Clamp: M8 B+, W-L
- Bore Diameter 1 [mm]: 8
- Vehicle type: Transit 190
- Net weight [kg]: 6,4
- Condition: New
Details
Product ID: A5002
- Alternator Charging Current [A]: 95
- Voltage [V]: 12
- Pulleys: with belt pulley
- Manufacturer Restriction: MITSUBISHI
- Quality: STANDARD LINE
- Version: A3TN1791
- New part without deposit
- Condition: New
Details
Product ID: 595.601.095.415
- Alternator Charging Current [A]: 95
- Voltage [V]: 12
- Belt Pulley Ø [mm]: 60,0
- Number of grooves: 4
- Clamp: B+ (M8)
- New Part
- Quality: TWA
- Number of mounting bores: 3
- Mounting Angle [degrees]: +60, 60
- Condition: New
Details
Product ID: 219144952
- Vehicle type: Transit 100
- Vehicle type: Transit 190
- Construction Year from: 07/1997
- Vehicle type: Transit 120
- Alternator Charging Current [A]: 95
- Voltage [V]: 12
- Belt Pulley Ø [mm]: 60
- Number of ribs: 4
- Plug Type ID: 0123
- Vehicle Main Current: for vehicles with 12V main current
- Clamp: M8 B+, W-L
- Bore Diameter 1 [mm]: 8
- Length 3 [mm]: 81,0
- Length [mm]: 34,0
- Net weight [kg]: 6,4
- Length 4 [mm]: 13,0
- Condition: Remanufactured
Core exchange £ 42,19 core charge (incl. 20% VAT) is NOT included The core charge will be refunded if you return the old spare part.
Details
Product ID: 210210A
- Alternator Charging Current [A]: 70
- Voltage [V]: 14
- Belt Pulley Ø [mm]: 67
- Pulleys: with V-ribbed belt pulley
- Number of grooves: 4
- Plug Type ID: B+D+W
- Rotation Direction: Clockwise rotation
- Alternator Type: incl. vacuum pump
- Number of mounting bores: 2
- Distance from belt pulley to alternator [mm]: 40
- Condition: New
Details
Product ID: 8EL 011 710-001
- Alternator Charging Current [A]: 70
- Voltage [V]: 14
- Construction Year to: 06/1997
- Belt Pulley Ø [mm]: 67
- Pulleys: with V-ribbed belt pulley
- Number of grooves: 4
- Used part return not required
- New part without deposit
- Assy./disassy. by qualified personnel required!
- Condition: New
Details
Product ID: LRB00381
- Vehicle type: Transit 190
- Construction Year from: 07/1997
- Alternator Charging Current [A]: 95
- Voltage [V]: 12
- Belt Pulley Ø [mm]: 60
- Number of ribs: 4
- Plug Type ID: 0123
- Vehicle Main Current: for vehicles with 12V main current
- Clamp: M8 B+, W-L
- Bore Diameter 1 [mm]: 8
- Length 3 [mm]: 81,0, 81
- Net weight [kg]: 6,4
- Length 4 [mm]: 13,0
- Condition: Remanufactured
Core exchange £ 29,75 Pledge is NOT included The core charge will be refunded if you return the old spare part.
Details
Product ID: STX100236R
- Alternator Charging Current [A]: 95
- Voltage [V]: 12
- Construction Year from: 06/1997
- Belt Pulley Ø [mm]: 60,7
- Pulleys: V-Ribbed Belt Pulley
- Number of ribs: 4
- Number of grooves: 4
- Exchange Part
- Connector/Clamp: with connection for speed sensor
- Condition: New
Core exchange £ 22,51 core charge (incl. 20% VAT) is NOT included The core charge will be refunded if you return the old spare part.
Details
Product ID: SKGN-0321166
- Alternator Charging Current [A]: 95
- Voltage [V]: 12
- Rated Voltage [V]: 14
- Belt Pulley Ø [mm]: 64
- Pulleys: V-Ribbed Belt Pulley
- Number of grooves: 4
- Plug Type ID: D+,W
- Vehicle Main Current: for vehicles with 12V main current
- Rotation Direction: Clockwise rotation
- Alternator Type: incl. vacuum pump
- Fastening Type: 3-point attachment
- Clamp: B+ (M8)
- Bore Diameter 1 [mm]: 8
- Number of mounting bores: 3
- Number of threaded holes: 2
- Thread Size: M8x1,25
- Distance from belt pulley to alternator [mm]: 33
- Units/Pulleys: incl. vacuum pump
- Condition: New
Details
Product ID: 4G0944
- Alternator Charging Current [A]: 95
- Voltage [V]: 12
- Rated Voltage [V]: 14
- Belt Pulley Ø [mm]: 64
- Pulleys: V-Ribbed Belt Pulley
- Number of grooves: 4
- Plug Type ID: D+,W
- Vehicle Main Current: for vehicles with 12V main current
- Rotation Direction: Clockwise rotation
- Alternator Type: incl. vacuum pump
- Fastening Type: 3-point attachment
- Clamp: B+ (M8)
- Bore Diameter 1 [mm]: 8
- Number of mounting bores: 3
- Number of threaded holes: 2
- Thread Size: M8x1,25
- Distance from belt pulley to alternator [mm]: 33
- Units/Pulleys: incl. vacuum pump
- Condition: New
Details
Alternator Transit Mk4 Platform/Chassis (VE83)
- Transit Mk4 Platform/Chassis VE83 2.5 TD (EME/L/S, ENE/L/S) 101 HP 08.1994 - 03.2000
- Transit Mk4 Platform/Chassis VE83 2.5 DI (EME/L/S, ENE/L/S) 76 HP 08.1994 - 03.2000
- Transit Mk4 Platform/Chassis VE83 2.5 TD (EME/L/S, ENE/L/S) 85 HP 08.1994 - 03.2000
- Transit Mk4 Platform/Chassis VE83 2.5 DI (EML/S, ENL/S) 69 HP 08.1994 - 03.2000
- Transit Mk4 Platform/Chassis VE83 2.5 DI (EML, ENE/L) 116 HP 05.1999 - 03.2000
- Transit Mk4 Platform/Chassis VE83 2.0 (EME/L/S, ENE/L/S) 114 HP 08.1994 - 03.2000
Alternator FORD TRANSIT
- Generator FORD Transit Mk6 Box (V347, V348, FA)
- Generator FORD Transit Mk7 Van (V363, FCD, FDD)
- Generator FORD TRANSIT Box (FA_ _)
- Generator FORD Transit Mk6 Platform / Chassis (V347, V348, FM, FN, FF)
- Generator FORD Transit Mk7 Platform / Chassis (V363, FED, FFD)
- Generator FORD Transit Mk6 Bus (V347, V348, FD, FB, FS, FZ, FC)
