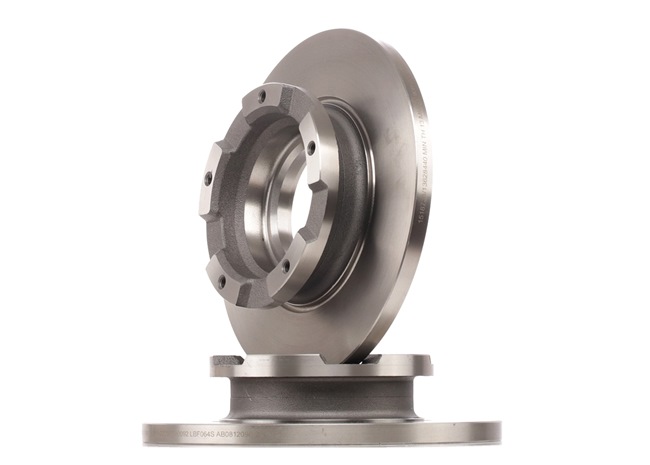

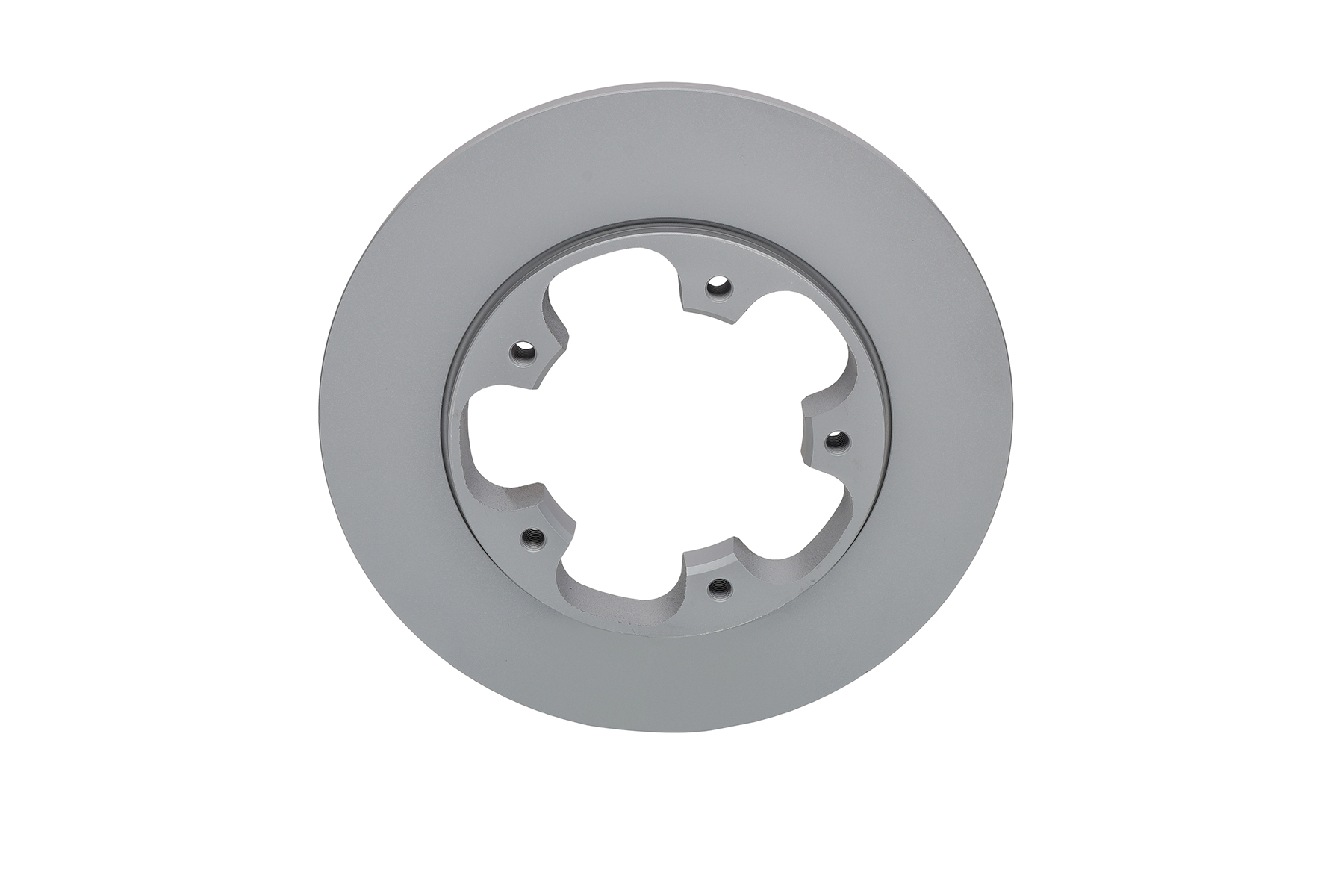

Brake discs FORD Transit Mk7 Platform / Chassis (V363, FED, FFD) YMR6 2.0 EcoBlue 4x4 130 HP
<
1
2
3
4
5
>
>>
Product ID: 104497
- TecDoc Engine Number: YMR6
- Construction Year to: 05/2019
- Tyres: for single tyres
- Brake Disc Type: internally vented
- Fitting Position: Front Axle
- Diameter [mm]: 308
- Centering Diameter [mm]: 93
- Rim Hole Number: 5
- Bolt Hole Circle Ø [mm]: 111,5
- Thickness [mm]: 55,4
- Brake Disc Thickness [mm]: 33
- Surface: Coated
- Minimum thickness [mm]: 30
- Weight [kg]: 11,3
- Observe service information
- Drilled: no
- Condition: New
Details
Product ID: BG5277C
- Fitting Position: Rear Axle
- Vehicle Equipment: for vehicles with electric parking brake
- Brake Disc Type: solid
- Diameter [mm]: 308
- Centering Diameter [mm]: 110
- Number of Holes: 5
- Brake Disc Thickness [mm]: 18
- Surface: Coated
- Minimum thickness [mm]: 16
- Height [mm]: 58
- Machining: High-carbon
- Test Mark: E1 90R-02C0250/2107
- Condition: New
Details
Product ID: LVBD1663
- Fitting Position: Front Axle
- Version: 350
- Brake Disc Type: internally vented
- Diameter [mm]: 308
- Centering Diameter [mm]: 93
- Number of Holes: 5
- Brake Disc Thickness [mm]: 33
- Surface: Coated
- Minimum thickness [mm]: 30
- Height [mm]: 55,5
- Weight [kg]: 11,639
- Thread Size: M10
- Condition: New
Details
Product ID: 24.0116-0137.1
- Tyres: for single tyres
- Fitting Position: Rear Axle
- Brake Disc Type: solid
- Diameter [mm]: 308,0
- Centering Diameter [mm]: 122,5
- Number of Holes: 5
- Bolt Hole Circle Ø [mm]: 150,0
- Brake Disc Thickness [mm]: 16,0
- Surface: Coated
- Minimum thickness [mm]: 13,0
- Inner Diameter [mm]: 200,0
- Height [mm]: 25,5
- Thread Size: M12x1,75
- MAPP code available
- Test Mark: E1 90R-02C0165/1156
- Drilled: no
- Condition: New
Details
Product ID: 8DD 355 122-801
- Fitting Position: Front Axle
- Tyres: for vehicles with rear dual tyres
- Tyres: for single tyres
- Construction Year to: 05/2019
- Brake Disc Type: internally vented
- Diameter [mm]: 308
- Centering Diameter [mm]: 93,1
- Hole Arrangement/Number: 05/05
- Wheel Bolt Bore Diameter [mm]: 12
- Bolt Hole Circle Ø [mm]: 113,5
- Brake Disc Thickness [mm]: 31
- Surface: Coated
- Product line: PRO
- Minimum thickness [mm]: 28
- Inner Diameter [mm]: 136
- Height [mm]: 61
- Weight [kg]: 11
- Supplementary Article / Supplementary Info Info 2: without wheel hub, without wheel bearing, without wheel studs
- Assy./disassy. by qualified personnel required!
- Drilled: no
- Condition: New
Details
Product ID: VKBD 80211 V1
- Fitting Position: Front Axle
- Version: 350
- Brake Disc Type: internally vented
- Diameter [mm]: 308
- Centering Diameter [mm]: 93
- Number of Holes: 5
- Bolt Hole Circle Ø [mm]: 111,5
- Brake Disc Thickness [mm]: 33
- Surface: Coated
- Minimum thickness [mm]: 30
- Height [mm]: 55,4
- Thread Size: M10
- Condition: New
Details
Product ID: BG9142C
- Fitting Position: Front Axle
- Fitting Position: Front Axle
- Tyres: for dual tyres
- for model code: Transit 350
- Brake Disc Type: Vented
- Diameter [mm]: 308
- Centering Diameter [mm]: 93
- Number of Holes: 5
- Brake Disc Thickness [mm]: 31
- Surface: Coated
- Minimum thickness [mm]: 28
- Height [mm]: 61
- Test Mark: E1 90R-02C0343/1769
- Drilled: no
- Condition: New
Details
Product ID: 09.C644.11
- Fitting Position: Front Axle
- Tyres: with dual tyres
- Fitting Position: Front Axle
- Construction Year from: 06/2019
- Brake Disc Type: internally vented
- Diameter [mm]: 308
- Centering Diameter [mm]: 93
- Number of Holes: 5
- Brake Disc Thickness [mm]: 31
- Surface: Coated
- Minimum thickness [mm]: 28
- Height [mm]: 61
- Machining: High-carbon
- Drilled: no
- Condition: New
Details
Product ID: ADF124347
- TecDoc Engine Number: YMR6
- Construction Year to: 05/2019
- Tyres: for single tyres
- Brake Disc Type: internally vented
- Fitting Position: Front Axle
- Diameter [mm]: 308
- Centering Diameter [mm]: 93
- Rim Hole Number: 5
- Bolt Hole Circle Ø [mm]: 112
- Thickness [mm]: 55
- Brake Disc Thickness [mm]: 33
- Surface: Coated
- Minimum thickness [mm]: 30
- Weight [kg]: 11,3
- Observe service information
- Drilled: no
- Condition: New
Details
Product ID: 82B1387
- Brake Disc Type: solid
- Fitting Position: Rear Axle
- Diameter [mm]: 288
- Centering Diameter [mm]: 96
- Number of Holes: 5
- Wheel Bolt Bore Diameter [mm]: М10х1,5
- Bolt Hole Circle Ø [mm]: 160
- Brake Disc Thickness [mm]: 16
- Surface: Uncoated
- Material: Cast Iron
- Minimum thickness [mm]: 13,0
- Inner Diameter [mm]: 120
- Height [mm]: 68,8
- Vehicle type: 250/260/270/280/290, 300/310
- Thread Size: M10x1,5
- Supplementary Article / Supplementary Info Info 2: with ABS sensor ring
- usable for vehicles to construction year: 2016/11
- Drilled: no
- Condition: New
Details
Product ID: V25-80034
- Brake Disc Type: internally vented
- Fitting Position: Front Axle
- Diameter [mm]: 308
- Rim Hole Number: 5
- Bolt Hole Circle Ø [mm]: 116
- Brake Disc Thickness [mm]: 33
- Minimum thickness [mm]: 30
- Height [mm]: 55
- TecDoc Engine Number: YMRA, BKRA
- Condition: New
Details
Product ID: DDF2468-1
- Brake Disc Type: Vented
- Fitting Position: Front Axle
- Diameter [mm]: 308
- Centering Diameter [mm]: 93,1
- Number of Holes: 5
- Bolt Hole Circle Ø [mm]: 113,5
- Brake Disc Thickness [mm]: 31
- Product line: PREMIER
- Height [mm]: 61
- Quantity Unit: Piece
- Supplementary Article / Supplementary Info: without accessories
- Supplementary Article / Supplementary Info Info 2: without bolts/screws
- Packing Type: Box
- Packaging length [cm]: 32,7
- Packaging width [cm]: 32,7
- Packaging height [cm]: 8,3
- Drilled: no
- Condition: New
Details
