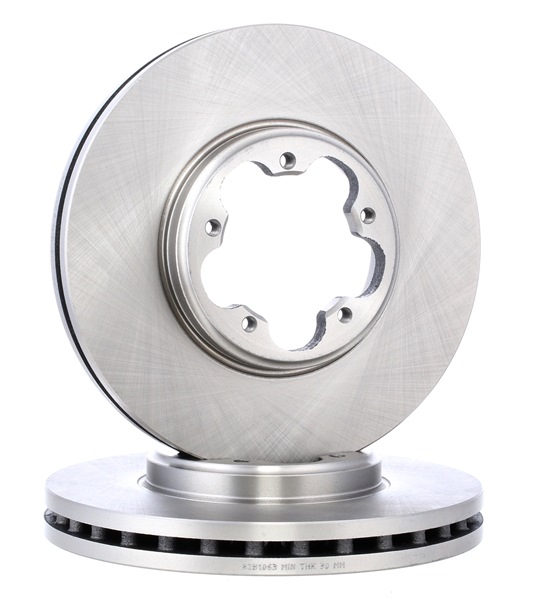

Brake discs FORD Transit Mk7 Platform / Chassis (V363, FED, FFD) BKFB 2.0 EcoBlue 130 HP
<
1
2
3
4
5
>
>>
Product ID: 92273003
- Fitting Position: Front Axle
- Tyres: for vehicles with rear single tyres
- Vehicle type: 330,350,390,410,470
- Construction Year to: 05/2019
- Brake Disc Type: internally vented
- Diameter [mm]: 308
- Centering Diameter [mm]: 93
- Hole Arrangement/Number: 05/05
- Wheel Bolt Bore Diameter [mm]: 8,5
- Bolt Hole Circle Ø [mm]: 111,5
- Brake Disc Thickness [mm]: 33
- Surface: Coated
- Product line: PRO
- Minimum thickness [mm]: 30
- Inner Diameter [mm]: 136
- Height [mm]: 55,5
- Weight [kg]: 11,5
- Supplementary Article / Supplementary Info Info 2: without wheel hub, without wheel bearing, without wheel studs
- Packaging length [cm]: 32,8
- Packaging width [cm]: 32,8
- Packaging height [cm]: 7,5
- Drilled: no
- Condition: New
Details
Product ID: 82B1063
- Tyres: with single tyres
- Vehicle type: 250,260,270,280,290, 300,310
- Brake Disc Type: Vented
- Fitting Position: Front Axle
- Diameter [mm]: 28
- Centering Diameter [mm]: 93,1
- Number of Holes: 5
- Wheel Bolt Bore Diameter [mm]: М10х1,5
- Bolt Hole Circle Ø [mm]: 111,5
- Brake Disc Thickness [mm]: 33
- Surface: Uncoated
- Material: Cast Iron
- Minimum thickness [mm]: 30
- Inner Diameter [mm]: 136
- Height [mm]: 55,5
- Thread Size: M10x1,5
- Number of mounting bores: 5
- Supplementary Article / Supplementary Info Info 2: without bolts/screws
- usable for vehicles to construction year: 2016/11
- Drilled: no
- Condition: New
Details
Product ID: 45831
- Vehicle type: 250/260/270/280/290, 300/310
- Tyres: for single tyres
- Brake Disc Type: Vented
- Fitting Position: Front Axle
- Diameter [mm]: 288
- Centering Diameter [mm]: 93,1
- Number of Holes: 5
- Bolt Hole Circle Ø [mm]: 111
- Brake Disc Thickness [mm]: 33
- Minimum thickness [mm]: 30
- Inner Diameter [mm]: 136
- Height [mm]: 55,3
- Machining: Alloyed/High-carbon
- Drilled: no
- Condition: New
Details
Product ID: 45835C
- Vehicle type: 330/350/370/390/410, 430/460/470
- Tyres: for single tyres
- Construction Year to: 05/2019
- Brake Disc Type: Vented
- Fitting Position: Front Axle
- Diameter [mm]: 308
- Number of Holes: 5
- Bolt Hole Circle Ø [mm]: 111,5
- Brake Disc Thickness [mm]: 33
- Surface: Coated
- Height [mm]: 55,3
- Drilled: no
- Condition: New
Details
Product ID: 103415
- Brake Disc Type: solid
- Fitting Position: Rear Axle
- Diameter [mm]: 308
- Centering Diameter [mm]: 96
- Number of Holes: 5
- Bolt Hole Circle Ø [mm]: 160
- Brake Disc Thickness [mm]: 16
- Surface: Coated
- Height [mm]: 68
- Supplementary Article / Supplementary Info Info 2: with ABS sensor ring
- Condition: New
Details
Product ID: 104497
- TecDoc Engine Number: YMFS, YMFA, YMF6
- Construction Year to: 05/2019
- Gross vehicle weight to [t]: 3,2
- Brake Disc Type: internally vented
- Fitting Position: Front Axle
- Diameter [mm]: 308
- Centering Diameter [mm]: 93
- Rim Hole Number: 5
- Bolt Hole Circle Ø [mm]: 111,5
- Thickness [mm]: 55,4
- Brake Disc Thickness [mm]: 33
- Surface: Coated
- Minimum thickness [mm]: 30
- Weight [kg]: 11,3
- Observe service information
- Drilled: no
- Condition: New
Details
Product ID: BDC6209
- Fitting Position: Front Axle
- Construction Year from: 05/2019
- Vehicle type: 310, 320, 300, 250, 260, 270, 280, 290
- Tyres: for single tyres
- Brake Disc Type: Vented
- Diameter [mm]: 288
- Centering Diameter [mm]: 93
- Number of Holes: 5
- Bolt Hole Circle Ø [mm]: 116
- Brake Disc Thickness [mm]: 33
- Surface: Coated
- Height [mm]: 55,4
- Condition: New
Details
Product ID: BG9391C
- Fitting Position: Front Axle
- Vehicle Production Country: Russia
- for article number: LP2661
- Brake Disc Type: Vented
- Diameter [mm]: 288
- Centering Diameter [mm]: 93,1
- Number of Holes: 5
- Brake Disc Thickness [mm]: 33
- Surface: Coated
- Minimum thickness [mm]: 30
- Height [mm]: 55,5
- Test Mark: E1 90R-02C0958/2605
- Condition: New
Details
Product ID: BG5277C
- Fitting Position: Rear Axle
- Vehicle Equipment: for vehicles with electric parking brake
- Brake Disc Type: solid
- Diameter [mm]: 308
- Centering Diameter [mm]: 110
- Number of Holes: 5
- Brake Disc Thickness [mm]: 18
- Surface: Coated
- Minimum thickness [mm]: 16
- Height [mm]: 58
- Machining: High-carbon
- Test Mark: E1 90R-02C0250/2107
- Condition: New
Details
Product ID: 8DD 355 122-761
- Fitting Position: Rear Axle
- Tyres: for vehicles with rear single tyres
- Vehicle type: 330,350,390,410,470
- Brake Disc Type: solid
- Diameter [mm]: 308
- Centering Diameter [mm]: 96
- Hole Arrangement/Number: 05/05
- Wheel Bolt Bore Diameter [mm]: 10
- Bolt Hole Circle Ø [mm]: 160
- Brake Disc Thickness [mm]: 16
- Surface: Coated
- Product line: PRO
- Minimum thickness [mm]: 13
- Inner Diameter [mm]: 120
- Height [mm]: 68,8
- Weight [kg]: 9,8
- Number of Teeth, ABS ring: 48
- Supplementary Article / Supplementary Info Info 2: without wheel hub, without wheel bearing, without wheel studs, with ABS sensor ring
- Assy./disassy. by qualified personnel required!
- Drilled: no
- Condition: New
Details
Product ID: DDF2470-1
- Brake Disc Type: Vented
- Fitting Position: Front Axle
- Diameter [mm]: 308
- Centering Diameter [mm]: 93
- Number of Holes: 5
- Bolt Hole Circle Ø [mm]: 111,5
- Brake Disc Thickness [mm]: 33
- Product line: PREMIER
- Height [mm]: 56
- Quantity Unit: Piece
- Supplementary Article / Supplementary Info: without accessories
- Supplementary Article / Supplementary Info Info 2: without bolts/screws
- Packing Type: Box
- Packaging length [cm]: 32,6
- Packaging width [cm]: 32,6
- Packaging height [cm]: 7
- Drilled: no
- Condition: New
Details
Product ID: 103142
- Brake Disc Type: Vented
- Fitting Position: Front Axle
- Diameter [mm]: 308
- Centering Diameter [mm]: 93
- Number of Holes: 5
- Bolt Hole Circle Ø [mm]: 111
- Brake Disc Thickness [mm]: 33
- Surface: Coated
- Height [mm]: 55
- Machining: Alloyed/High-carbon
- Supplementary Article / Supplementary Info Info 2: with bolts/screws
- Condition: New
Details
Brake discs Transit Mk7 Platform / Chassis (V363, FED, FFD)
- Transit Mk7 Platform / Chassis V363, FED, FFD 2.2 TDCi RWD 155 HP 08.2013 - ...
- Transit Mk7 Platform / Chassis V363, FED, FFD 2.2 TDCi 155 HP 08.2013 - 12.2018
- Transit Mk7 Platform / Chassis V363, FED, FFD 2.0 EcoBlue 170 HP 03.2016 - 06.2024
- Transit Mk7 Platform / Chassis V363, FED, FFD 2.0 EcoBlue RWD 170 HP 03.2016 - 06.2024
- Transit Mk7 Platform / Chassis V363, FED, FFD 2.2 TDCi RWD 125 HP 08.2013 - 12.2018
- Transit Mk7 Platform / Chassis V363, FED, FFD 2.0 EcoBlue RWD 130 HP 03.2016 - ...
Brake discs FORD TRANSIT
- Brake rotors FORD Transit Mk6 Box (V347, V348, FA)
- Brake rotors FORD Transit Mk7 Van (V363, FCD, FDD)
- Brake rotors FORD TRANSIT Box (FA_ _)
- Brake rotors FORD Transit Mk6 Platform / Chassis (V347, V348, FM, FN, FF)
- Brake rotors FORD Transit Mk6 Bus (V347, V348, FD, FB, FS, FZ, FC)
- Brake rotors FORD TRANSIT Platform/Chassis (FM_ _, FN_ _)
