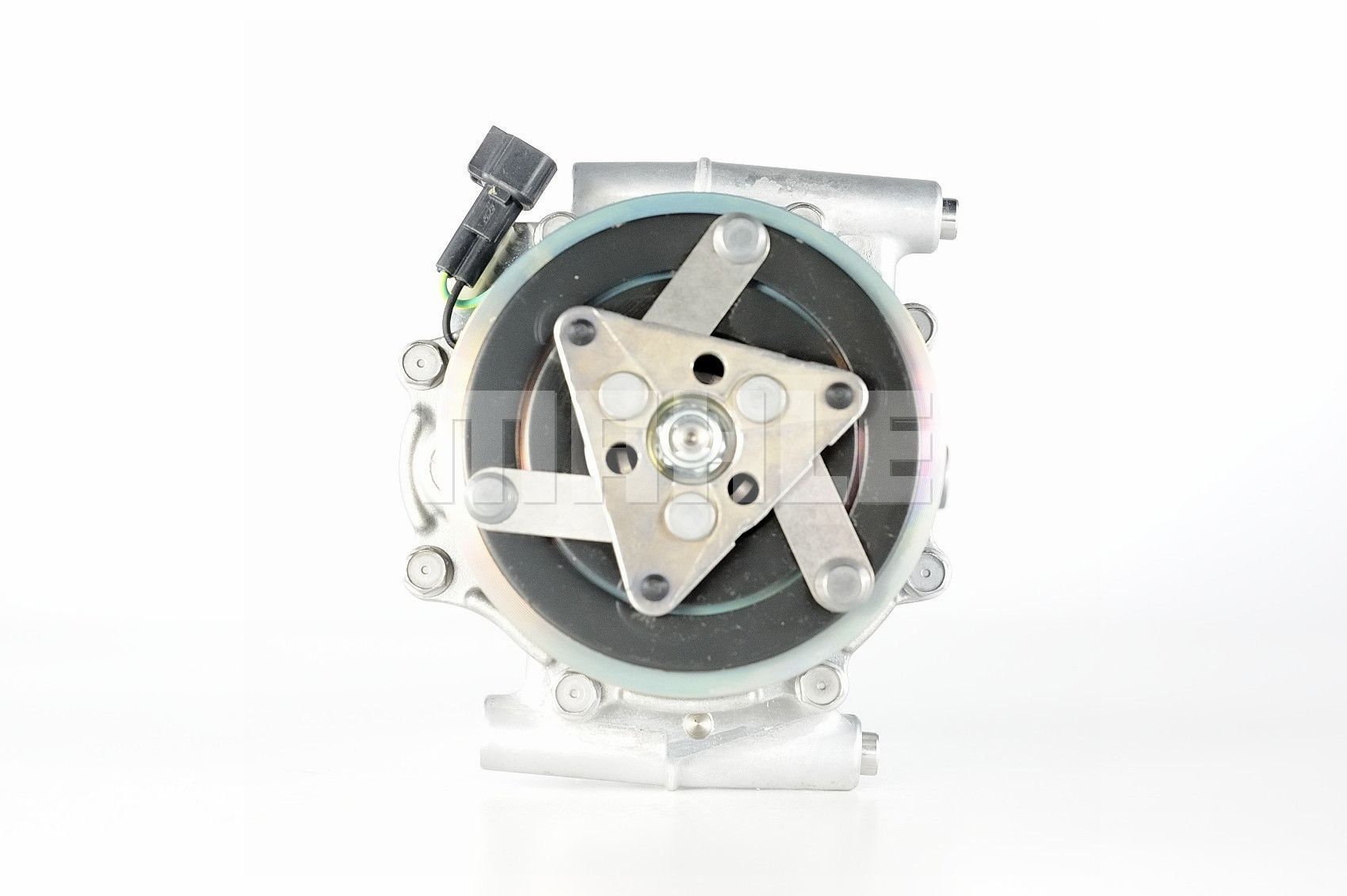

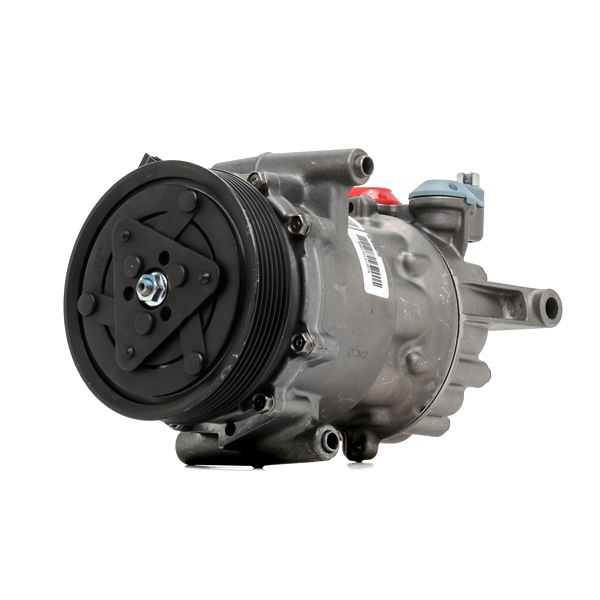

AC compressor FORD Transit Mk6 Platform / Chassis (V347, V348, FM, FN, FF) CYFC 2.2TDCi 125 HP
<
1
2
3
4
5
>
>>
Product ID: 090.595.065.876
- Compressor Oil: PAG 46
- Compressor ID: SD7V16
- Belt Pulley Ø [mm]: 110,0
- Refrigerant: R134a
- Connector type: PAD
- Quality: +Line Original
- Number of grooves: 6
- Condition: New
IMPORTANT
When replacing the air compressor, the has to be replaced and the system flushed! Otherwise, the warranty will not be valid!
Details
free delivery
Product ID: ACP01046
- Compressor Oil: PAG 46
- Manufacturer Restriction: SANDEN SD7V16
- Oil Fill Quantity [ml]: 200
- Belt Pulley Ø [mm]: 127
- Number of mounting bores: 3
- Number of grooves: 6
- Net weight [kg]: 6,61
- Condition: Remanufactured
IMPORTANT
When replacing the air compressor, the has to be replaced and the system flushed! Otherwise, the warranty will not be valid!
Core exchange £ 52,86 core charge (incl. 20% VAT) is NOT included The core charge will be refunded if you return the old spare part.
Details
free delivery
Product ID: 670145
- Oil Fill Quantity [ml]: 200
- Belt Pulley Ø [mm]: 110
- Component Number: 671149
- Number of connectors: 2
- Manufacturer restriction air conditioning compressor: Sanden
- Condition: New
IMPORTANT
When replacing the air compressor, the has to be replaced and the system flushed! Otherwise, the warranty will not be valid!
Details
free delivery
Product ID: ACP 1361 000P
- Compressor Oil: PAG 46
- Manufacturer Restriction: Sanden
- Compressor ID: SD7V16
- Belt Pulley Ø [mm]: 110
- Number of ribs: 6
- Refrigerant: R134a
- Voltage [V]: 12
- Pulleys: with V-ribbed belt pulley
- New Part
- Connector type: PAD
- Packaging height [cm]: 21,25
- Packaging length [cm]: 29,2
- Packaging width [cm]: 18,50
- Number of grooves: 6
- Net Weight [g]: 6316
- Condition: New
IMPORTANT
When replacing the air compressor, the has to be replaced and the system flushed! Otherwise, the warranty will not be valid!
Details
free delivery
Product ID: 1 986 AD1 387
- Compressor Oil: PAG 46
- Oil Fill Quantity [ml]: 200
- Belt Pulley Ø [mm]: 110
- Refrigerant: R134a
- Voltage [V]: 12
- Construction Year to: 12/2013
- Inlet Ø [mm]: 20,5
- Outlet Ø [mm]: 18
- Supplementary Article / Supplementary Info Info 2: with mounting manual, with seal ring
- Number of grooves: 6
- Condition: New
IMPORTANT
When replacing the air compressor, the has to be replaced and the system flushed! Otherwise, the warranty will not be valid!
Details
free delivery
Product ID: 89590
- Vehicle type: Transit 330
- Vehicle type: Transit 300
- Compressor Oil: PAG 46
- Oil Fill Quantity [ml]: 160
- Compressor ID: SD7V16
- Belt Pulley Ø [mm]: 110
- Refrigerant: R134a
- Voltage [V]: 12
- New Part
- Inlet Ø [mm]: 20,5
- Outlet Ø [mm]: 17,9
- Supplementary Article / Supplementary Info Info 2: with PAG compressor oil, with magnetic clutch, with diode
- Number of grooves: 6
- Number of pins: 2
- Condition: New
IMPORTANT
When replacing the air compressor, the has to be replaced and the system flushed! Otherwise, the warranty will not be valid!
Details
free delivery
Product ID: KTT090308
- Oil Fill Quantity [ml]: 200
- Voltage [V]: 12
- Number of grooves: 7
- Condition: New
IMPORTANT
When replacing the air compressor, the has to be replaced and the system flushed! Otherwise, the warranty will not be valid!
Details
free delivery
Product ID: 32827
- Compressor Oil: PAG 46
- Manufacturer Restriction: SANDEN-EQUIVALENT
- Oil Fill Quantity [ml]: 200
- Compressor ID: SD7V16
- Belt Pulley Ø [mm]: 110
- Voltage [V]: 12
- Pulleys: with V-ribbed belt pulley
- Inlet Ø [mm]: 20,5
- Outlet Ø [mm]: 18
- Supplementary Article / Supplementary Info Info 2: with seal ring
- Quality: OE-EQUIVALENT
- Number of grooves: 6
- Condition: New
IMPORTANT
When replacing the air compressor, the has to be replaced and the system flushed! Otherwise, the warranty will not be valid!
Details
Product ID: 447K0697R
- Vehicle type: Transit 350
- Vehicle type: Transit 330, Transit 300
- Compressor Oil: PAG 46
- Oil Fill Quantity [ml]: 200
- Belt Pulley Ø [mm]: 127
- Number of mounting bores: 3
- Number of grooves: 6
- Net weight [kg]: 6,6
- Condition: Remanufactured
IMPORTANT
When replacing the air compressor, the has to be replaced and the system flushed! Otherwise, the warranty will not be valid!
Core exchange £ 51,63 core charge (incl. 20% VAT) is NOT included The core charge will be refunded if you return the old spare part.
Details
Product ID: 51-0827
- Compressor Oil: PAG 46
- Manufacturer Restriction: SANDEN SD7V16
- Oil Fill Quantity [ml]: 200
- Belt Pulley Ø [mm]: 110
- Number of mounting bores: 3
- Number of grooves: 6
- Supplementary Article / Supplementary Info: with gaskets/seals
- Net weight [kg]: 5,94
- Condition: Remanufactured
IMPORTANT
When replacing the air compressor, the has to be replaced and the system flushed! Otherwise, the warranty will not be valid!
Core exchange £ 31,13 core charge (incl. 20% VAT) is NOT included The core charge will be refunded if you return the old spare part.
Details
free delivery
Product ID: 700510826
- Compressor Oil: PAG 46
- Manufacturer Restriction: SANDEN SD7V16
- Oil Fill Quantity [ml]: 150
- Belt Pulley Ø [mm]: 110
- Refrigerant: R134a
- Number of mounting bores: 3
- Number of grooves: 7
- Supplementary Article / Supplementary Info: with gaskets/seals
- Net weight [kg]: 6,03
- Condition: Remanufactured
IMPORTANT
When replacing the air compressor, the has to be replaced and the system flushed! Otherwise, the warranty will not be valid!
Core exchange £ 42,28 core charge (incl. 20% VAT) is NOT included The core charge will be refunded if you return the old spare part.
Details
free delivery
Product ID: 1800K167
- Compressor Oil: PAG 46
- Manufacturer Restriction: Type Visteon
- Oil Fill Quantity [ml]: 190
- Belt Pulley Ø [mm]: 125
- Refrigerant: R134a
- Voltage [V]: 12
- Pulleys: with V-ribbed belt pulley
- Inlet Ø [mm]: 16,1
- Outlet Ø [mm]: 13
- Number of grooves: 7
- Partially filled
- Fastening Type: 3-point attachment
- Filter type: for rooftop air conditioner
- Number of pins: 2
- Condition: New
IMPORTANT
When replacing the air compressor, the has to be replaced and the system flushed! Otherwise, the warranty will not be valid!
Details
AC compressor Transit Mk6 Platform / Chassis (V347, V348, FM, FN, FF)
- Transit Mk6 Platform / Chassis V347, V348, FM, FN, FF 2.4 TDCi RWD 140 HP 04.2006 - 08.2014
- Transit Mk6 Platform / Chassis V347, V348, FM, FN, FF 2.4 TDCi RWD 115 HP 04.2006 - 08.2014
- Transit Mk6 Platform / Chassis V347, V348, FM, FN, FF 2.2 TDCi 140 HP 10.2007 - 09.2011
- Transit Mk6 Platform / Chassis V347, V348, FM, FN, FF 2.2 TDCi 130 HP 04.2006 - 08.2014
- Transit Mk6 Platform / Chassis V347, V348, FM, FN, FF 2.2 TDCi 110 HP 04.2006 - 08.2014
- Transit Mk6 Platform / Chassis V347, V348, FM, FN, FF 2.2 TDCi 85 HP 04.2006 - 08.2014
AC compressor FORD TRANSIT
- Air con compressor FORD Transit Mk6 Box (V347, V348, FA)
- Air con compressor FORD Transit Mk7 Van (V363, FCD, FDD)
- Air con compressor FORD TRANSIT Box (FA_ _)
- Air con compressor FORD Transit Mk7 Platform / Chassis (V363, FED, FFD)
- Air con compressor FORD Transit Mk6 Bus (V347, V348, FD, FB, FS, FZ, FC)
- Air con compressor FORD TRANSIT Platform/Chassis (FM_ _, FN_ _)
