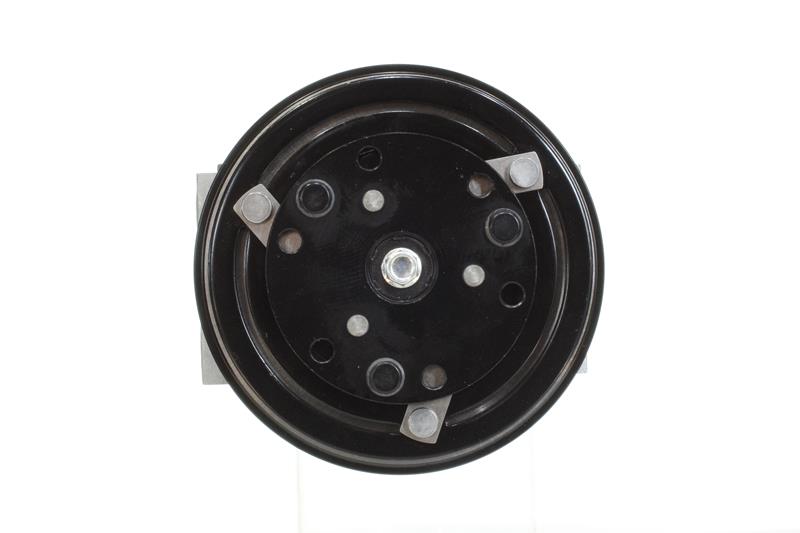

AC compressor FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) D2FA 2.4DI (F_B_, F_C_, F_A_) 90 HP
<<
<
2
3
4
5
6
>
>>
Product ID: FDK167
- Manufacturer Restriction: Visteon
- Compressor ID: FS10
- Refrigerant: R134a
- Pulleys: with V-ribbed belt pulley
- Transmission Type: Manual Transmission
- Inlet Ø [mm]: 16,3
- Outlet Ø [mm]: 12,9
- Clutch ID: PV7
- Quality: Premium
- Condition: New
IMPORTANT
When replacing the air compressor, the has to be replaced and the system flushed! Otherwise, the warranty will not be valid!
Details
free delivery
Product ID: FDAK322
- Oil Fill Quantity [ml]: 160
- Compressor ID: FS10
- Belt Pulley Ø [mm]: 127
- Refrigerant: R134a
- Voltage [V]: 12
- Inlet Ø [mm]: 16,5
- Outlet Ø [mm]: 13,5
- Supplementary Article / Supplementary Info Info 2: without PAG compressor oil, with magnetic clutch, without diode
- Number of grooves: 6
- Capacity Compressor [cc]: 171
- Number of pins: 1
- Condition: New
IMPORTANT
When replacing the air compressor, the has to be replaced and the system flushed! Otherwise, the warranty will not be valid!
Details
Product ID: 51-0117
- Compressor Oil: PAG 46
- Manufacturer Restriction: VISTEON
- Oil Fill Quantity [ml]: 205
- Belt Pulley Ø [mm]: 127
- Refrigerant: R134a
- Number of mounting bores: 3
- Number of grooves: 7
- Supplementary Article / Supplementary Info: with gaskets/seals
- Net weight [kg]: 6,41
- Condition: Remanufactured
IMPORTANT
When replacing the air compressor, the has to be replaced and the system flushed! Otherwise, the warranty will not be valid!
Core exchange £ 47,60 Pledge is NOT included The core charge will be refunded if you return the old spare part.
Details
Product ID: K18013A
- Compressor ID: FS10
- Belt Pulley Ø [mm]: 129
- Voltage [V]: 12
- for OE number: 1433151
- Condition: New
IMPORTANT
When replacing the air compressor, the has to be replaced and the system flushed! Otherwise, the warranty will not be valid!
Details
free delivery
Product ID: TSP0155377
- Compressor Oil: PAG 46
- Manufacturer Restriction: Visteon
- Compressor ID: FS10
- Belt Pulley Ø [mm]: 127
- Supplementary Article / Supplementary Info Info 2: with PAG compressor oil
- Clutch ID: PV7
- Condition: New
IMPORTANT
When replacing the air compressor, the has to be replaced and the system flushed! Otherwise, the warranty will not be valid!
Details
Product ID: ACP 88
- Compressor Oil: PAG 46
- Manufacturer Restriction: Visteon
- Compressor ID: FS10-170
- Belt Pulley Ø [mm]: 129
- Number of ribs: 6
- Refrigerant: R134a
- Pulleys: with V-ribbed belt pulley
- Inlet Ø [mm]: 16,5
- Outlet Ø [mm]: 13,5
- Supplementary Article / Supplementary Info Info 2: with seal ring
- Connector type: Top/PAD
- Rated Voltage [V]: 12
- Condition: New
IMPORTANT
When replacing the air compressor, the has to be replaced and the system flushed! Otherwise, the warranty will not be valid!
Details
Product ID: 8623316
- Compressor Oil: PAG 46
- Manufacturer Restriction: VISTEON
- Oil Fill Quantity [ml]: 205
- Compressor ID: FS10
- Belt Pulley Ø [mm]: 113
- Number of ribs: 7
- Voltage [V]: 12
- Pulleys: V-Ribbed Belt Pulley
- Condition: Remanufactured
IMPORTANT
When replacing the air compressor, the has to be replaced and the system flushed! Otherwise, the warranty will not be valid!
Core exchange £ 41,60 core charge (incl. 20% VAT) is NOT included The core charge will be refunded if you return the old spare part.
Details
Product ID: 10-0177
- Compressor Oil: PAG 46
- Oil Fill Quantity [ml]: 225
- Belt Pulley Ø [mm]: 125
- Refrigerant: R134a
- Number of grooves: 6
- Operating voltage [V]: 12
- Connection Diameter (suction side) [mm]: 16
- Net weight [kg]: 7
- Connection Diameter (pressure side) [mm]: 13
- Manufacturer restriction air conditioning compressor: FS10
- Manufacturer: VISTEON
- Condition: Remanufactured
IMPORTANT
When replacing the air compressor, the has to be replaced and the system flushed! Otherwise, the warranty will not be valid!
Details
Product ID: 13.72011
- Belt Pulley Ø [mm]: 129
- Number of ribs: 6
- Voltage [V]: 12
- Weight [g]: 6344
- Condition: New
IMPORTANT
When replacing the air compressor, the has to be replaced and the system flushed! Otherwise, the warranty will not be valid!
Details
free delivery
Product ID: 090.595.006.311
- Compressor Oil: PAG 46
- Compressor ID: FS10-154
- Belt Pulley Ø [mm]: 129,0
- Refrigerant: R134a
- Connector type: Top/PAD
- Quality: Mahle New
- Number of grooves: 6
- Condition: New
IMPORTANT
When replacing the air compressor, the has to be replaced and the system flushed! Otherwise, the warranty will not be valid!
Details
Product ID: SKKM-0340024
- Compressor Oil: PAG 46
- Oil Fill Quantity [ml]: 190
- Compressor ID: FS10-170
- Belt Pulley Ø [mm]: 129
- Voltage [V]: 12
- Pulleys: with multi-belt pulley
- Supplementary Article / Supplementary Info Info 2: with PAG compressor oil, with seal ring
- Number of grooves: 7
- Connector Shape: rectangular
- Condition: New
IMPORTANT
When replacing the air compressor, the has to be replaced and the system flushed! Otherwise, the warranty will not be valid!
Details
Product ID: 090.595.031.000
- Compressor Oil: PAG 46
- Compressor ID: FS10
- Belt Pulley Ø [mm]: 127,0
- Refrigerant: R134a
- Connector type: Top/PAD
- Quality: +Line Original
- Number of grooves: 7
- Condition: New
IMPORTANT
When replacing the air compressor, the has to be replaced and the system flushed! Otherwise, the warranty will not be valid!
Details
AC compressor TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)
- TRANSIT Bus FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _ 2.0 DI (F_E_, F_F_, F_G_) 100 HP 08.2000 - 05.2006
- TRANSIT Bus FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _ 2.0 TDCi (F_F_, F_E_, F_G_) 125 HP 08.2002 - 05.2006
- TRANSIT Bus FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _ 2.0 DI (F_E_, F_F_, F_G_) 86 HP 08.2000 - 05.2006
- TRANSIT Bus FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _ 2.0 DI (F_E_, F_F_, F_G_) 75 HP 08.2000 - 05.2006
- TRANSIT Bus FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _ 2.4 TDE (F_C_, F_B_, F_A_) 125 HP 07.2001 - 05.2006
- TRANSIT Bus FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _ 2.4 DI RWD (F_B_, F_C_, F_A_) 120 HP 01.2000 - 05.2006
AC compressor FORD TRANSIT
- Air con compressor FORD Transit Mk6 Box (V347, V348, FA)
- Air con compressor FORD Transit Mk7 Van (V363, FCD, FDD)
- Air con compressor FORD TRANSIT Box (FA_ _)
- Air con compressor FORD Transit Mk6 Platform / Chassis (V347, V348, FM, FN, FF)
- Air con compressor FORD Transit Mk7 Platform / Chassis (V363, FED, FFD)
- Air con compressor FORD Transit Mk6 Bus (V347, V348, FD, FB, FS, FZ, FC)
