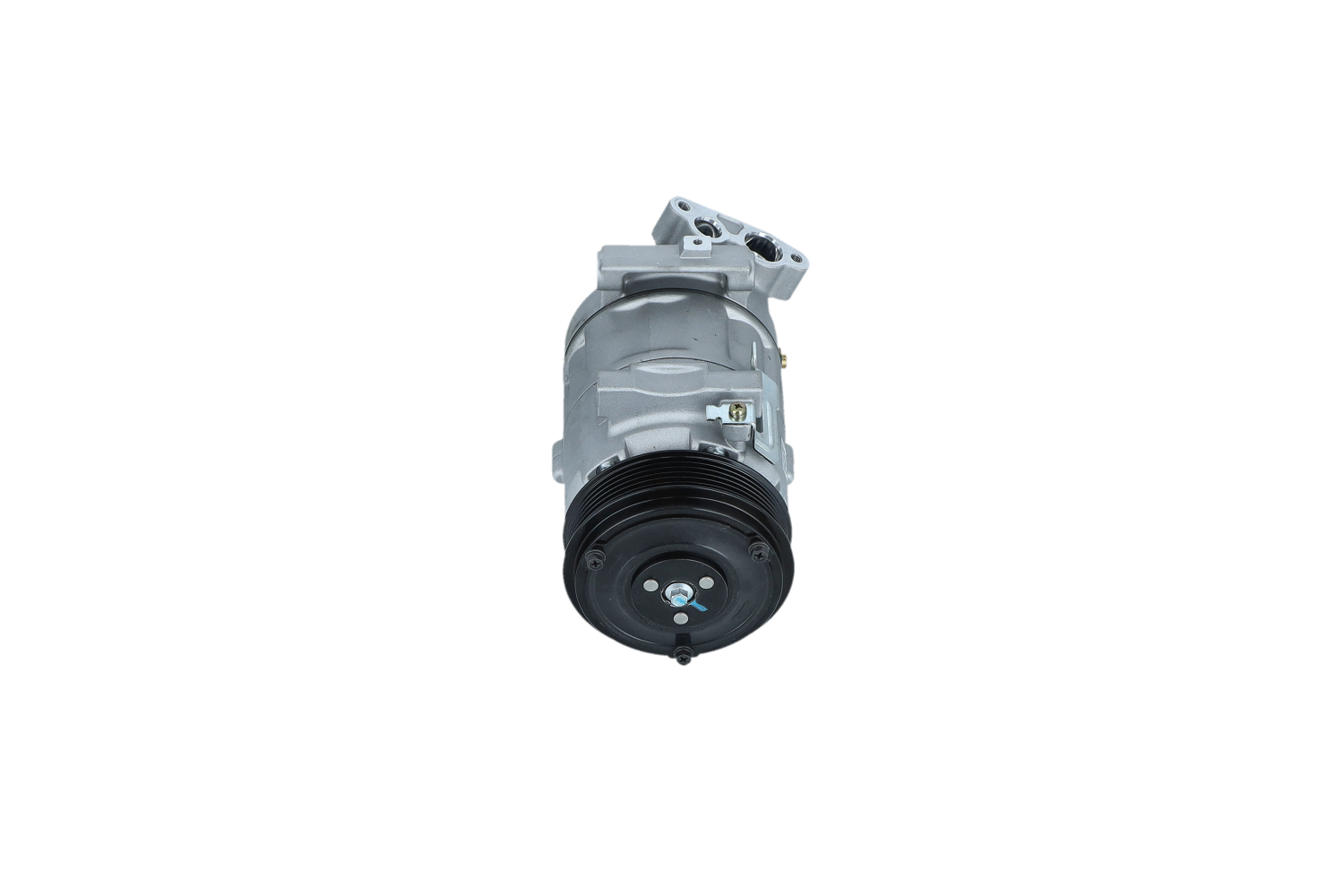

AC compressor DS DS 5 Hatchback 5GM(EP6FDTX) 1.6THP 210 210 HP
<<
<
1
2
3
4
>
>>
free delivery
Product ID: AC330030
- Compressor Oil: PAG 46
- Manufacturer Restriction: DENSO-EQUIVALENT
- Oil Fill Quantity [ml]: 110
- Belt Pulley Ø [mm]: 119
- Refrigerant: R134a
- Voltage [V]: 12
- Pulleys: with V-ribbed belt pulley
- Inlet Ø [mm]: 20,7
- Outlet Ø [mm]: 14,4
- Supplementary Article / Supplementary Info Info 2: with PAG compressor oil, with seal ring
- Quality: OE-EQUIVALENT
- Number of grooves: 6
- Connector Shape: rectangular
- Condition: New
IMPORTANT
When replacing the air compressor, the has to be replaced and the system flushed! Otherwise, the warranty will not be valid!
Details
free delivery
Product ID: 10-2568
- Compressor Oil: PAG 46
- Oil Fill Quantity [ml]: 140
- Belt Pulley Ø [mm]: 108
- Refrigerant: R134a
- Number of grooves: 6
- Operating voltage [V]: 12
- Connection Diameter (suction side) [mm]: 20,7
- Net weight [kg]: 7
- Connection Diameter (pressure side) [mm]: 14,4
- Manufacturer restriction air conditioning compressor: 5SEL09C
- Manufacturer: DENSO
- Condition: Remanufactured
IMPORTANT
When replacing the air compressor, the has to be replaced and the system flushed! Otherwise, the warranty will not be valid!
Core exchange £ 50,53 core charge (incl. 20% VAT) is NOT included The core charge will be refunded if you return the old spare part.
Details
free delivery
Product ID: 890051
- Compressor Oil: PAG 46
- Oil Fill Quantity [ml]: 90
- Compressor ID: 5SEL12C
- Belt Pulley Ø [mm]: 119
- Refrigerant: R134a
- Voltage [V]: 12
- Inlet Ø [mm]: 21
- Outlet Ø [mm]: 15
- Supplementary Article / Supplementary Info Info 2: with PAG compressor oil, without diode
- Number of grooves: 6
- Capacity Compressor [cc]: 134
- Number of pins: 2
- Condition: New
IMPORTANT
When replacing the air compressor, the has to be replaced and the system flushed! Otherwise, the warranty will not be valid!
Details
free delivery
Product ID: PEAK315
- Compressor Oil: PAG 46
- Oil Fill Quantity [ml]: 90
- Compressor ID: 5SEL12C
- Belt Pulley Ø [mm]: 119
- Refrigerant: R134a
- Voltage [V]: 12
- Inlet Ø [mm]: 21
- Outlet Ø [mm]: 15
- Supplementary Article / Supplementary Info Info 2: with PAG compressor oil, without diode
- Number of grooves: 6
- Capacity Compressor [cc]: 134
- Number of pins: 2
- Condition: New
IMPORTANT
When replacing the air compressor, the has to be replaced and the system flushed! Otherwise, the warranty will not be valid!
Details
free delivery
Product ID: 891016
- Compressor Oil: PAG 46 YF
- Oil Fill Quantity [ml]: 90
- Compressor ID: 5SEL12
- Belt Pulley Ø [mm]: 110
- Refrigerant: R1234yf
- Voltage [V]: 12
- Inlet Ø [mm]: 21
- Outlet Ø [mm]: 14
- Supplementary Article / Supplementary Info Info 2: with PAG compressor oil, without diode
- Number of grooves: 6
- Capacity Compressor [cc]: 123
- Condition: New
IMPORTANT
When replacing the air compressor, the has to be replaced and the system flushed! Otherwise, the warranty will not be valid!
Details
free delivery
Product ID: 690757
- Compressor Oil: PAG 46
- Oil Fill Quantity [ml]: 130
- Compressor ID: 5SE
- Belt Pulley Ø [mm]: 114
- Refrigerant: R134a, R1234yf
- Voltage [V]: 12
- Supplementary Article / Supplementary Info Info 2: with PAG compressor oil
- Weight [kg]: 4,43
- Exchange Part
- Number of grooves: 6
- Condition: Remanufactured
IMPORTANT
When replacing the air compressor, the has to be replaced and the system flushed! Otherwise, the warranty will not be valid!
Core exchange £ 79,12 core charge (incl. 20% VAT) is NOT included The core charge will be refunded if you return the old spare part.
Details
free delivery
Product ID: ACP01292
- Compressor Oil: PAG 46 YF
- Manufacturer Restriction: Denso 5SEL12C
- Oil Fill Quantity [ml]: 110
- Belt Pulley Ø [mm]: 110
- Refrigerant: R134a, R1234yf
- Number of grooves: 6
- Fastening Type: 3-point attachment
- Supplementary Article / Supplementary Info: with gaskets/seals
- Net weight [kg]: 4,17
- Condition: Remanufactured
IMPORTANT
When replacing the air compressor, the has to be replaced and the system flushed! Otherwise, the warranty will not be valid!
Core exchange £ 53,16 core charge (incl. 20% VAT) is NOT included The core charge will be refunded if you return the old spare part.
Details
free delivery
Product ID: 090.225.001.050
- Compressor Oil: PAG 46
- Compressor ID: 6SEL16C
- Belt Pulley Ø [mm]: 119,0
- Refrigerant: R134a
- Connector type: PAD
- Quality: +Line Original
- Number of grooves: 6
- Condition: New
IMPORTANT
When replacing the air compressor, the has to be replaced and the system flushed! Otherwise, the warranty will not be valid!
Details
free delivery
Product ID: 851865N
- Compressor Oil: PAG 46
- Manufacturer Restriction: Denso
- Compressor ID: 5SEL12
- Belt Pulley Ø [mm]: 119
- Number of ribs: 6
- Refrigerant: R134a
- Voltage [V]: 12
- Inlet Ø [mm]: 20,7
- Outlet Ø [mm]: 14,4
- Connector type: PAD
- Rated Voltage [V]: 12
- Weight [kg]: 4,76
- Packaging height [cm]: 19
- Packaging length [cm]: 29
- Packaging width [cm]: 20
- Condition: New
IMPORTANT
When replacing the air compressor, the has to be replaced and the system flushed! Otherwise, the warranty will not be valid!
Details
free delivery
Product ID: 690018
- Compressor Oil: PS-R1
- Oil Fill Quantity [ml]: 110
- Compressor ID: 5SL
- Belt Pulley Ø [mm]: 110
- Refrigerant: R1234yf
- Voltage [V]: 12
- New Part
- Supplementary Article / Supplementary Info Info 2: with PAG compressor oil
- Weight [kg]: 5,19
- Number of grooves: 6
- Condition: New
IMPORTANT
When replacing the air compressor, the has to be replaced and the system flushed! Otherwise, the warranty will not be valid!
Details
Product ID: 447K0254R
- Compressor Oil: PAG 46
- Oil Fill Quantity [ml]: 110
- Compressor ID: 6SEL16C
- Belt Pulley Ø [mm]: 119
- Number of ribs: 6
- Refrigerant: R134a
- Weight [g]: 4495, 5080
- Number of grooves: 6
- Length [mm]: 210
- Mounting Type: Bolted
- Condition: Remanufactured
IMPORTANT
When replacing the air compressor, the has to be replaced and the system flushed! Otherwise, the warranty will not be valid!
Core exchange £ 52,05 core charge (incl. 20% VAT) is NOT included The core charge will be refunded if you return the old spare part.
Details
free delivery
Product ID: 32593
- Compressor Oil: PAG 46
- Manufacturer Restriction: DENSO-EQUIVALENT
- Oil Fill Quantity [ml]: 110
- Belt Pulley Ø [mm]: 119
- Refrigerant: R134a
- Voltage [V]: 12
- Pulleys: with V-ribbed belt pulley
- Inlet Ø [mm]: 20,7
- Outlet Ø [mm]: 14,4
- Supplementary Article / Supplementary Info Info 2: with PAG compressor oil, with seal ring
- Quality: OE-EQUIVALENT
- Number of grooves: 6
- Connector Shape: rectangular
- Condition: New
IMPORTANT
When replacing the air compressor, the has to be replaced and the system flushed! Otherwise, the warranty will not be valid!
Details
AC compressor DS 5 Hatchback
- DS 5 Hatchback 2.0 BlueHDi 180 180 HP 04.2015 - 12.2018
- DS 5 Hatchback 1.6 BlueHDi 120 120 HP 06.2015 - 12.2018
- DS 5 Hatchback 2.0 BlueHDi 150 150 HP 04.2015 - 12.2018
- DS 5 Hatchback 1.6 THP 165 (KF5GZT) 165 HP 07.2015 - 12.2018
- DS 5 Hatchback 1.6 BlueHDi 115 116 HP 06.2015 - 12.2018
- DS 5 Hatchback 1.6 THP 160 163 HP 07.2015 - 12.2018
